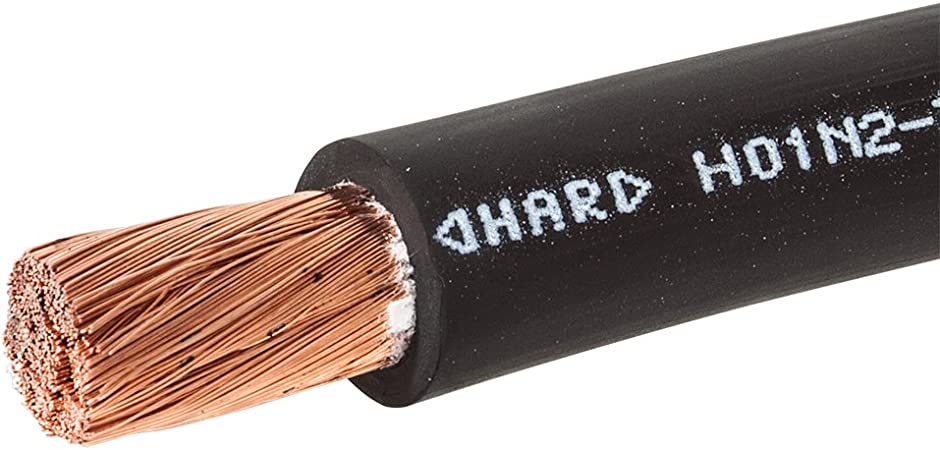

CE H01N2-D

CE H01N2-D

CE H01N2-D

Conductor: stranded fine bare copper or tinned copper wire
Insulation: rubber of polychloroprene (EM5)
Insulation Color: Black
Temperature : 80℃
Nominal Voltage: 100V

1.Introduction of  CE H01N2-D

CE H01N2-D is power and control cable, rubber -welding cable, 100V, based on EN 50525-2-81, IEC 60245, flame-retardant. H01N2-D are intended for use with hand-held electrodes at 100V in dry, humid and moist rooms as well as outdoors, where the cables are subjected to high mechanical stresses. In other respects, the general specifications of DIN VDE 0298-300 apply.Welcome to inquiry.



2.Parameter (Specification) of CE H01N2-D

Description

CE H01N2-D

Conductor:

      stranded fine bare copper or tinned copper wire

Insulation:

rubber of polychloroprene (EM5)

Insulation Color

Black

Rated Temperature

80

Rated voltage:

100V

Minimal Bending Radius:

  8D

Standard

EN 50525



Technical Data

Cross section

Cooper wire

O.D.

Insulation thickness

Cable O.D.

Copper weight



mm2

mm

mm

mm

Kg/km

16

0.21

2.0

9.5

210

25

0.21

2.0

11.0

300

35

0.21

2.0

12.0

400

50

0.21

2.0

14.0

560

70

0.21

2.4

16.5

780

95

0.21

2.6

18.5

1010

120

0.51

2.8

20.0

1250

3.Feature of the CE H01N2-D



1)Use on handheld electrodes keepers till 100 V
2) Class 6 Extra Flexible Copper wire,  fine-stranded tinned or bare copper
3) Separator made of synthetic film or paper

4)Brand: Anyte



4.Detail of the CE H01N2-D



1 ….. fine-stranded tinned or bare copper

2 ….. separator tape

3 ….. outer sheath of polychloroprene (EM5), black





5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: SHANGHAI, NINGBO



Delivery: By Sea, By Air, By express.



6 FAQ

What is your lead time for bulk goods?

A: Honestly, it depends on order quantity and cable material. Normal lead time is around 2-3weeks.



Q: How do you guarantee the quality?

A: We are an UL/TUV/CSA/SAA/ISO9000.1 certificated company. All our materials are RoHS 2.0. When production,For each step inspector is on routing inspection, and 100% test before delivery.
