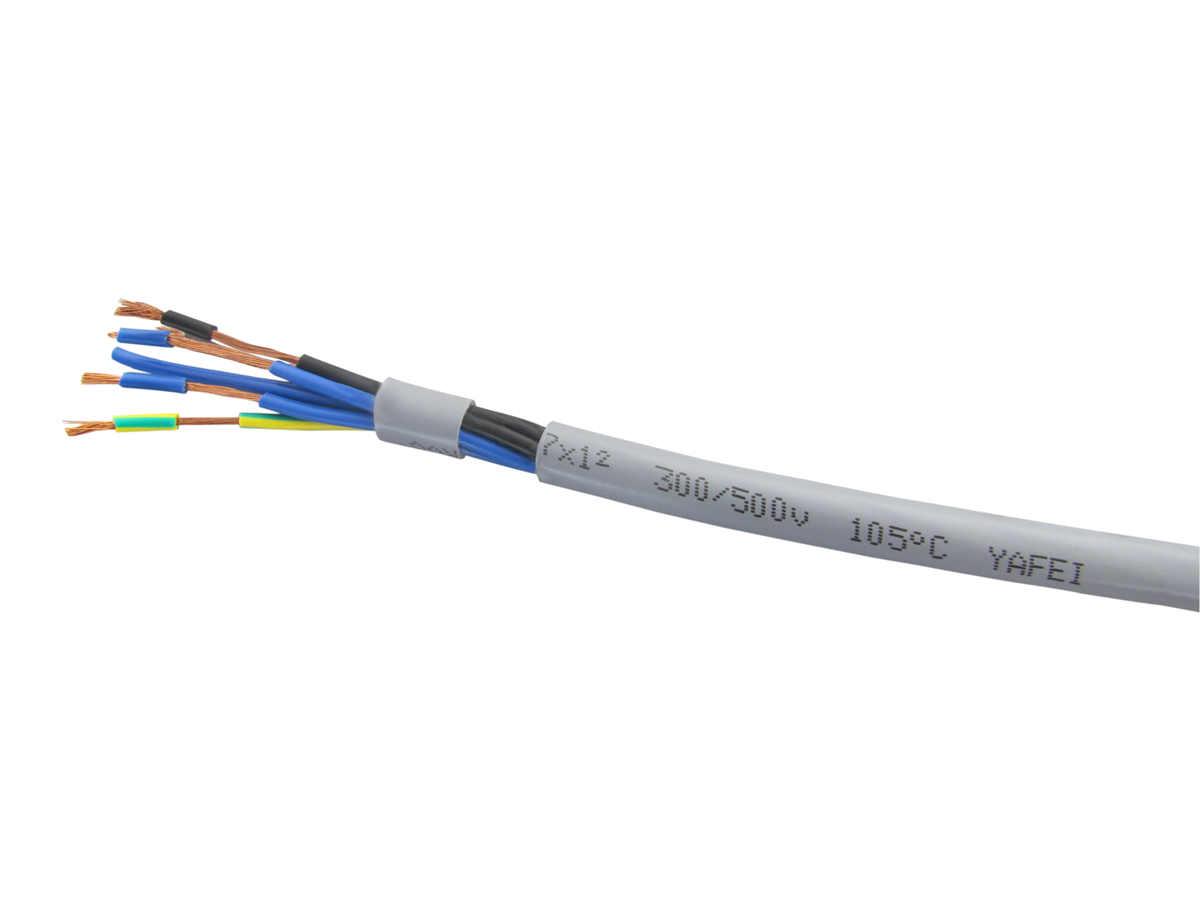

Mehradriges flexibles Kabel
Dirigent: Cooper Conductor der Klasse 5/6 (gestrandet)
Isolierung: PVC
Isolationsfarbe: Farben oder Schwarz mit Nummer
Mantel: PVC
Temperaturbereich: -10 – +70 °C
Nennspannung: 300/500 V, 450/750 V
Flexible Kabel sind trotz der hohen Witterungsbeständigkeit für den Einsatz im Trockenbereich konzipiert. Man findet sie in der Haushaltselektronik wie Radios, Lampen, tragbaren Geräten, Büromaschinen, Haartrocknern usw
Beschreibung |
Multi-Core Flexible Kabel |
Dirigent: |
Litzenleiter aus Kupfer der Klasse 5/6 (flexibel) |
Isolierung: |
PVC-Verbindung |
Isolierfarbe |
Rot, Blau, Gelb/Grün oder nach WunschHrsg |
Mantel |
PVC-Verbindung |
Mantelfarbe |
Schwarz, Grau oder wie gewünscht |
Nenntemperatur |
70℃ |
Nennspannung: |
300/500V , 450/750 V |
Prüfspannung: |
2500 V |
Minimaler Biegeradius: |
8D |
Standard |
IEC 60502 |
Technische Daten
An |
Nennspannung |
Anzahl der Drähte |
Isolationsstärke |
Manteldicke |
Größe |
Max. Leiterwiderstand bei 20℃ |
Mindest. Isolationswiderstand bei 70℃ |
||
(mm2) |
v |
n/mm |
(mm) |
(mm) |
(mm) |
(MΩ.km) |
(MΩ.km) |
||
|
|
|
|
|
Oberer, höher |
Am niedrigsten |
Kupfer |
Verzinntes Kupfer |
|
2×0,5 |
300/500V |
16/0.2 |
0.6 |
0.9 |
3,5×5,5 |
4,2×6,5 |
38 |
38.3 |
0.013 |
2×0,75 |
300/500V |
24/0.2 |
0.6 |
0.9 |
3,8×5,9 |
4,6×7,1 |
24.5 |
24.8 |
0.012 |
2×1,0 |
300/500V |
32/0.2 |
0.6 |
0.9 |
3,9×6,1 |
4,8×7,4 |
18.1 |
18.2 |
0.011 |
2×1,5 |
300/500V |
30/0.25 |
0.7 |
0.9 |
4,4×7,0 |
5,3×8,5 |
12.1 |
12.2 |
0.011 |
2×2,5 |
300/500V |
49/0.25 |
0.8 |
1.0 |
5,1×8,4 |
6,2×10,1 |
7.41 |
7.56 |
0.01 |
2×4,0 |
300/500V |
56/0.3 |
0.8 |
1.0 |
5,6×9,2 |
6,7×11,1 |
4.61 |
4.7 |
0.0085 |
2×6,0 |
300/500V |
84/0.3 |
0.8 |
1.1 |
6,2×10,4 |
7,5×12,5 |
3.08 |
3.11 |
0.007 |
2×10 |
300/500V |
80/0.4 |
1.0 |
1.2 |
7,9×13,4 |
9,5×16,2 |
1.83 |
1.84 |
0.0065 |
3×0,5 |
300/500V |
16/0.2 |
0.6 |
0.9 |
3,5×7,2 |
4,2×9,2 |
38 |
38.3 |
0.013 |
3×0,75 |
300/500V |
24/0.2 |
0.6 |
0.9 |
3,8×7,9 |
4,6×9,6 |
24.5 |
24.8 |
0.012 |
3×1,0 |
300/500V |
32/0.2 |
0.6 |
0.9 |
3,9×8,4 |
4,8×10,1 |
18.1 |
18.2 |
0.011 |
3×1,5 |
300/500V |
30/0.25 |
0.7 |
0.9 |
4,4×9,6 |
5,3×11,7 |
12.1 |
12.2 |
0.011 |
3×2,5 |
300/500V |
49/0.25 |
0.8 |
1.0 |
5,1×11,6 |
6,2×14,0 |
7.41 |
7.56 |
0.01 |
3×4,0 |
300/500V |
56/0.3 |
0.8 |
1.1 |
5,8×13,1 |
7,0×15,8 |
4.61 |
4.7 |
0.0085 |
3×6,0 |
300/500V |
84/0.3 |
0.8 |
1.1 |
6,2×14,5 |
7,5×17,5 |
3.08 |
3.11 |
0.007 |
3.Merkmal der Multi-Core Flexible Kabel
1) Leiter: Flexibler, blanker Kupferdraht. Mehrleiter.
2) Isolierung: PVC-Isolierung.
3) Mantel: PVC-Mantel.
4.Detail der Multi-Core Flexible Kabel
1) Bedingt beständig gegen Wasser, Öle, Säuren, Laugen.
2) Standardgrößen und kundenspezifische Farben auf Anfrage erhältlich (schwarz, rot, gelb, orange, grün, weiß…).
3) Hervorragende Beständigkeit gegen Abrieb und Verformung.
4) Marke: Wie dem auch sei
5 Verpackung und Lieferung
1) Packaging Details: Usually 100m/roll. Can be negotiated.
2) Hafen: SHANGHAI , NINGBO
Lieferung: Auf dem Seeweg, per Flugzeug, per Express.
6 FAQ:
F: Was bedeutet flexibles Kabel?
A: Flexible cable is a specific type of electrical wiring that describes a flexible electrical cable or cord that is made up of multiple thin wires that have been twisted or bunched together.
F: Kann ein flexibles Kabel für die Beleuchtung geeignet sein?
A: Yes of course. Usually two core flexible cable. Cable is used for wiring light fittings with plastic lamp holders which do not require an earth. The cable only has two cores being live and neutral. As this is flexible cable it will be of circular shape with an outer sheath and two colour coded PVC insulated cores.
F: Warum wird zum Schweißen von Kabeln flexibler Draht anstelle von massivem Kabel verwendet?
A: Welding cables would be very impractical if they were made of single conductors, not to mention heavy. Actually, they’re very heavy . So welding cables need to be made as flexible as possible to ensure that they can be used, practically, in a variety of job sites and locations
